How To Create A Kontakt Multi-Channel Preset In Ableton Live

Native Instruments Kontakt is a fully-featured software sampler, and in many ways, exceeds the abilities of classic hardware samplers. In the modern world of digital audio workstations, Kontakt is just about indispensable. Yes, it comes with a TON of features and is compatible with just about every sample format known to mankind.

But one of the real great features of this sampler is the endless amount of realistic, third-party sample banks that have been released since Kontakt’s inception. Kontakt’s internal structure consists of samples grouped into instruments, and these instruments can be grouped together to create multis.

Making use of the multis requires, well, multiple MIDI inputs into Kontakt. There are several ways to do this in Ableton, but this time around we will be setting up an instrument with multiple outputs and saving it as a preset in Live.

Step 1

In a new Ableton session, create a new channel by dragging and dropping a Kontakt VSTi with 8 audio outs (or however many outs you need) into a empty mixer slot.

Ableton Live

Step 2

In Kontakt, click on the empty rack space to create a number of empty instruments. If you are using Kontakt 4 or later, click the presets/batch configuration and open the batch functions. Under batch functions, select “clear the output section and create one individual channel for each loaded instrument”.

This will auto-route audio from each instrument to its own unique output, providing you the opportunity to add external effects to each individual channel.

Ableton Live

Step 3

Drag and drop an External Instrument from the Live Device Browser into an empty mixer slot. In your external instrument, make your MIDI routing target the Kontakt channel. In the second drop-down menu, route your MIDI further inside Kontakt to your first instrument input.

Ableton Live

Step 4

Clone your External Instrument to create one for each of your Kontakt instruments. Be sure to change the MIDI routings to instruments 2–8 (or however many instruments you have in the instance of Kontakt). In addition, route the audio from each Kontakt instrument to the appropriate Live External Instrument.

Ableton Live

Step 5

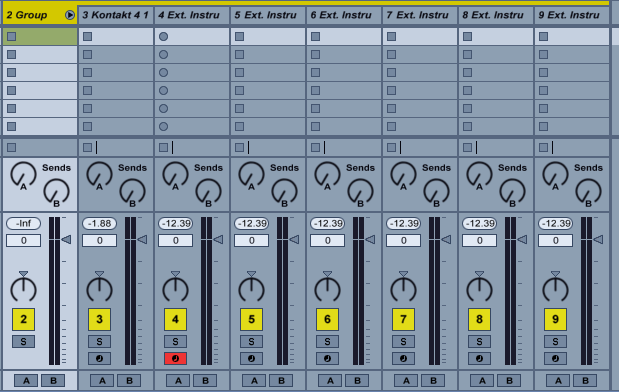

Select the Kontakt channel and all the External Instruments channels and group them together.

Ableton Live

Step 6

After grouping the channel together, rename the group, and add to the Ableton Instrument library, for ease of use later.

Ableton Live
Ableton Live

Ableton Live Ableton Live Ableton Live Ableton Live Ableton Live
Ableton Live
